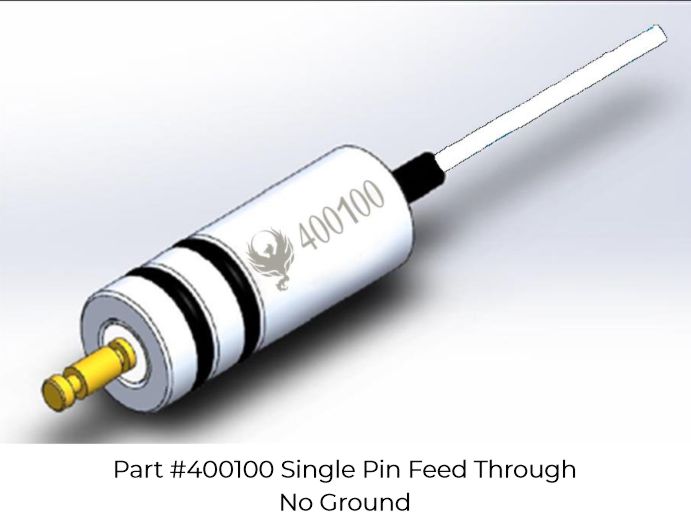

Single Pin Feed Through – no ground (400100)
This is a Single Pin Feed Through with an isolated feed thru pin and no ground or body connection.
Maximum temperature – 350 degrees F
Maximum pressure – 20,000 psi
Maximum voltage – 600 Vdc
Maximum current – 2 amps
*Each unit comes with two size 113, 75 duro o-rings installed.

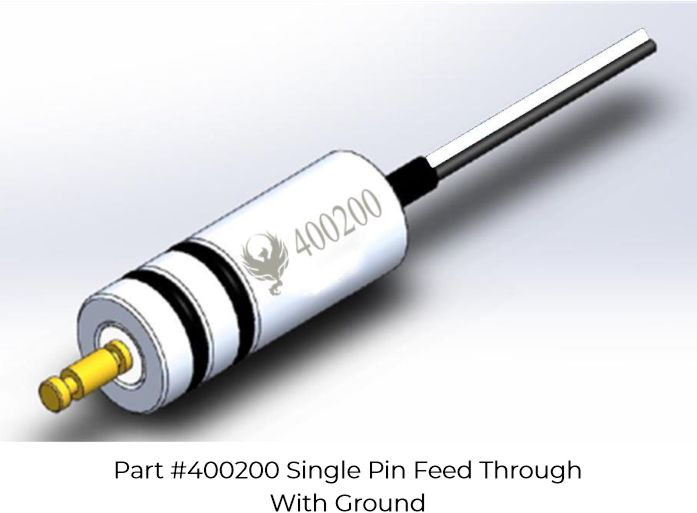

Single Pin Feed Through with ground (400200)
This is a Single Pin Feed Through with an isolated feed thru pin and a grounded body with a welded ground connection.
Maximum temperature – 350 degrees F
Maximum pressure – 20,000 psi
Maximum voltage – 600 Vdc
Maximum current – 2 amps
*Each unit comes with two size 113, 75 duro o-rings installed.
