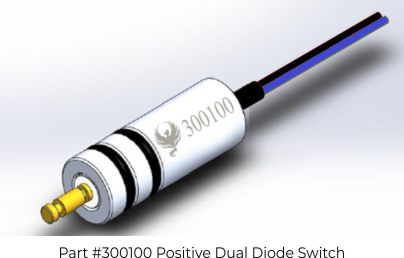

Positive (+) Dual Diode Switch (300100)
Hardwired dual diode positive polarity switch packaged inside pressure bulkhead body. Passes positive (+) current to lower gun detonator and negative (-) current to upper gun detonator.
Maximum temperature – 350 degrees F
aximum pressure – 20,000 psi
Maximum voltage – 600 Vdc
Maximum current – 2 amps
*Each unit comes with two size 113, 75 duro o-rings installed.

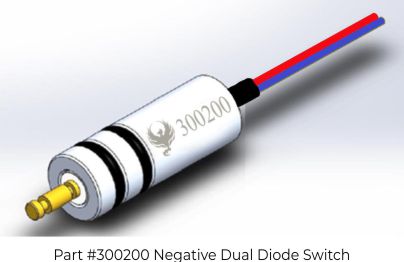

Negative (-) Dual Diode Switch (300200)
Hardwired dual diode negative polarity switch packaged inside pressure bulkhead body. Passes negative (-) current to lower gun detonator and positive (+) current to upper gun detonator.
Maximum temperature – 350 degrees F
Maximum pressure – 20,000 psi
Maximum voltage – 600 Vdc
Maximum current – 2 amps
*Each unit comes with two size 113, 75 duro o-rings installed.
